How To Resolve Cloudflare Error Code 521 with CloudPanel?

• What is Cloudflare Error 521?

• Cloudflare Common Error 521 Symptoms & Diagnosis

• What Are The Common Causes of Error Code 521 in Cloudflare?

• How CloudPanel Resolves Cloudflare Error Code 521?

• 6 Detailed Steps To Fix Error Code 521

• How To Troubleshoot Specific Error 521 In Cloudflare?

• What Are The Preventive Measures To Fix The Error 521 Issue?

• CloudPanel vs. Other Control Panels for Error 521

• FAQs

• Summary

What is Cloudflare Error 521?

Cloudflare Error Code 521 (Web Server is Down) is a HTTP status code. Error code 521 is a common error that happens when Cloudflare can't connect to your server. This error shows that:

• Cloudflare found your server's IP through DNS.

• Cloudflare tried to connect on ports 80/443.

• Your server either refused the connection or didn't answer in time.

The problem exists between Cloudflare and your server. It's not between users and Cloudflare. CloudPanel gives you tools to fix this connection issue.

Cloudflare Common Error 521 Symptoms & Diagnosis

Symptom	Explanation	Severity	CloudPanel Diagnosis Tool

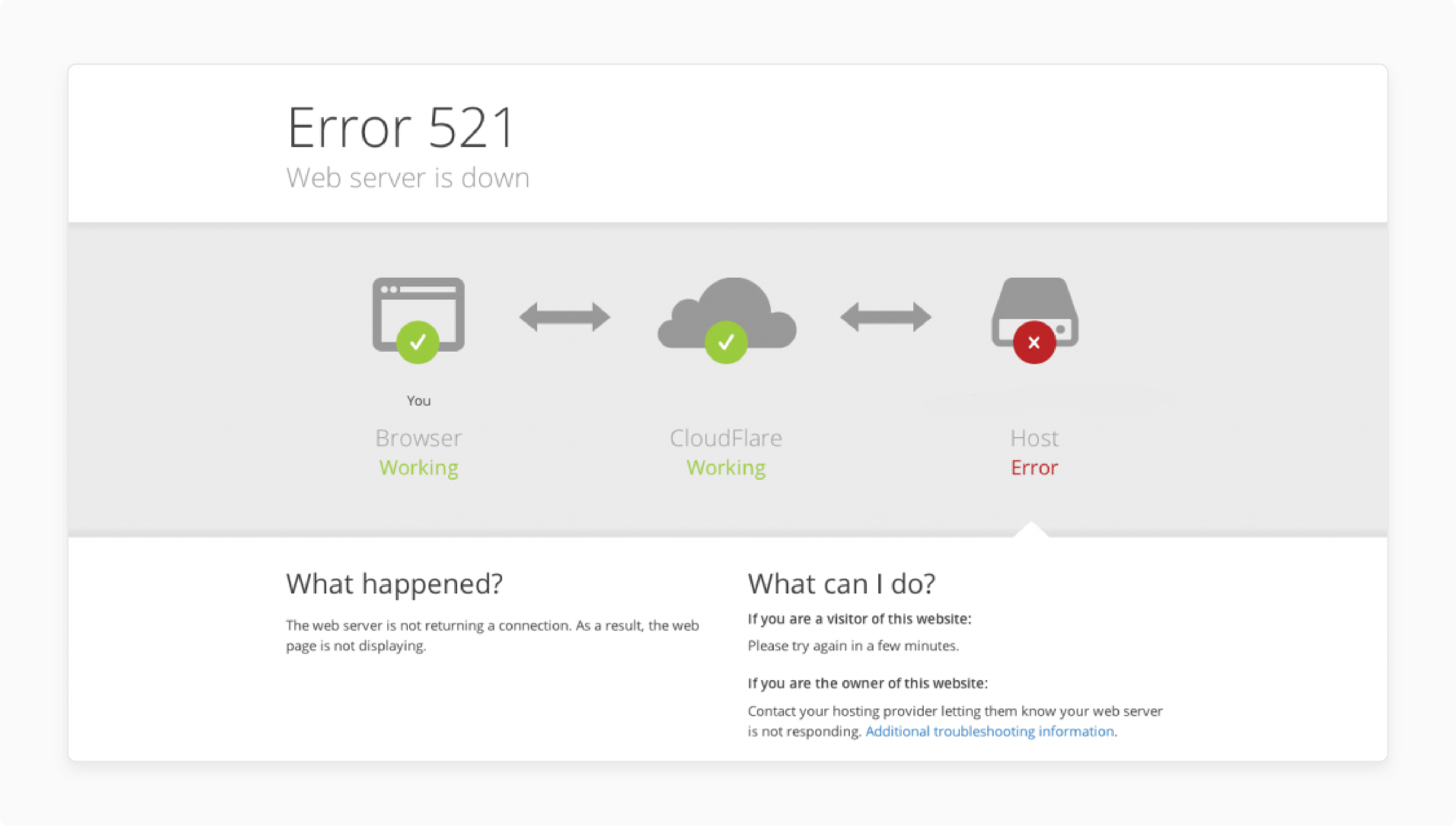

Orange Cloudflare error page with "Error 521"	Standard error display for all visitors	High	Real-time monitoring alerts
Intermittent connection failures	Server resource limits or firewall issues	Medium	Connection tracking graphs
Site works but fails through Cloudflare	DNS or proxy configuration problem	Medium	DNS validation checker
Only specific pages trigger Error 521	Resource-intensive scripts timing out	Low	Page-specific performance analyzer

What Are The Common Causes of Error Code 521 in Cloudflare?

1. Server Downtime Issues

• Web server software failure: NGINX or Apache stopped working.

• Server overload: CPU/memory maxed out.

• Server reboot: Planned or crash-related downtime.

• Host provider work: Scheduled or emergency fixes.

2. DNS Configuration Problems

• Wrong A/CNAME records: DNS points to the wrong IP address.

• DNS update delays: Recent DNS changes have not spread worldwide yet.

• CloudPanel DNS setup errors: DNS zones not set up right.

3. SSL/TLS Certificate Issues

• Bad certificates: Invalid or expired SSL certificates.

• SSL handshake fails: Server configuration can't complete the handshake.

• Protocol mismatch: Cloudflare uses TLS 1.3. But the server only supports older versions.

4. Firewall Restrictions

• Blocked Cloudflare IPs: Server firewall blocks Cloudflare IP ranges.

• Closed ports: Needed ports (80/443) closed or limited.

• Rate limits: Connection caps trigger firewall rules.

5. Cache and Performance Issues

• Server limits reached: Traffic too high for server capacity.

• Database limits: The backend database times out or hits limits.

• App timeouts: PHP/application stops during processing.

How CloudPanel Resolves Cloudflare Error Code 521?

CloudPanel offers tools made to fix connection issues between your server and Cloudflare:

1. Simple DNS Management

CloudPanel has an easy-to-use DNS interface. It makes checking and fixing DNS records simple:

• One-click DNS check: See if DNS records point to your server.

• Visual DNS editor: Add and change records with instant checking.

• Spread checker: See global DNS update status.

• Multi-domain control: Handle many domains from one screen.

2. Advanced NGINX Configuration Tools

CloudPanel's NGINX tools let you fine-tune settings for Cloudflare:

• Ready-made Cloudflare templates: Apply Cloudflare-ready configs with one click.

• Real IP setup: Make NGINX use CF-Connecting-IP.

• Visual configuration editor: Change NGINX settings without command lines.

• Configuration testing: Test settings before using them.

• Quick restarts: Apply changes without manual service restarts.

3. Full Firewall Management

CloudPanel makes firewall setup for Cloudflare easy:

• Cloudflare IP whitelist tool: Allow all Cloudflare IP ranges at once.

• Scheduled IP updates: Keep Cloudflare IP lists current.

• Port control: Make sure ports 80/443 work right.

• Rule testing: Check firewall rules before using them.

• Connection logs: Track refused connections for fixing.

4. Real-Time Server Monitoring

CloudPanel watches your server to catch issues before they cause Error 521:

• Resource alerts: Get notices when CPU/RAM near limits.

• Service tracking: Watch NGINX/Apache uptime and speed.

• Connection counts: Track active and refused connections.

• Speed metrics: Find slowdowns before they cause timeouts.

• Auto-recovery: Restart services when issues appear.

5. Smart Cache Management

CloudPanel's caching tools help prevent Error 521 from speed issues:

• Browser cache setup: Make client-side caching better.

• Server caching: Set up and control server caches.

• Cache clearing tools: Clear specific caches when needed.

• Cache checking: See cache hit/miss rates.

6. Complete Log Analysis

CloudPanel puts all logs in one place for faster Error 521 fixing:

• All-in-one log viewer: See all logs from one screen.

• Error highlights: Auto-highlight connection problems.

• Log filters: Find Cloudflare entries.

• Pattern finder: Spot repeat issues.

• Live log stream: Watch logs as connections happen.

6 Detailed Steps To Fix Error Code 521

Follow these steps to fix Error 521 with CloudPanel's tools.

Step 1: Check Server Status (Difficulty: Basic)

• Log in to the CloudPanel dashboard

• Go to Monitoring > Service Status

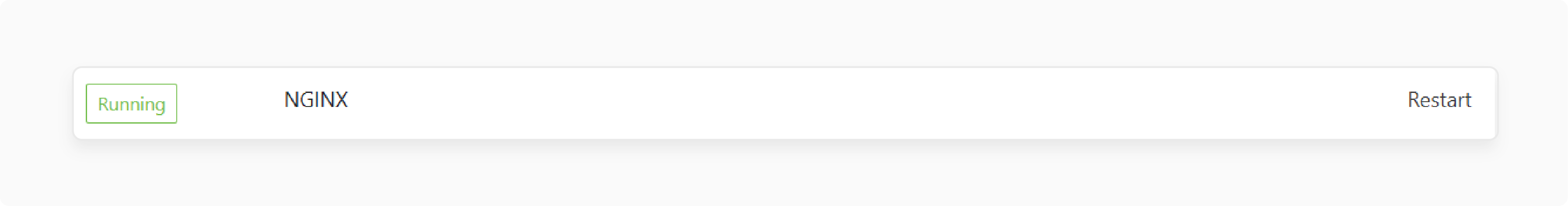

• Make sure NGINX/Apache is running (green status light)

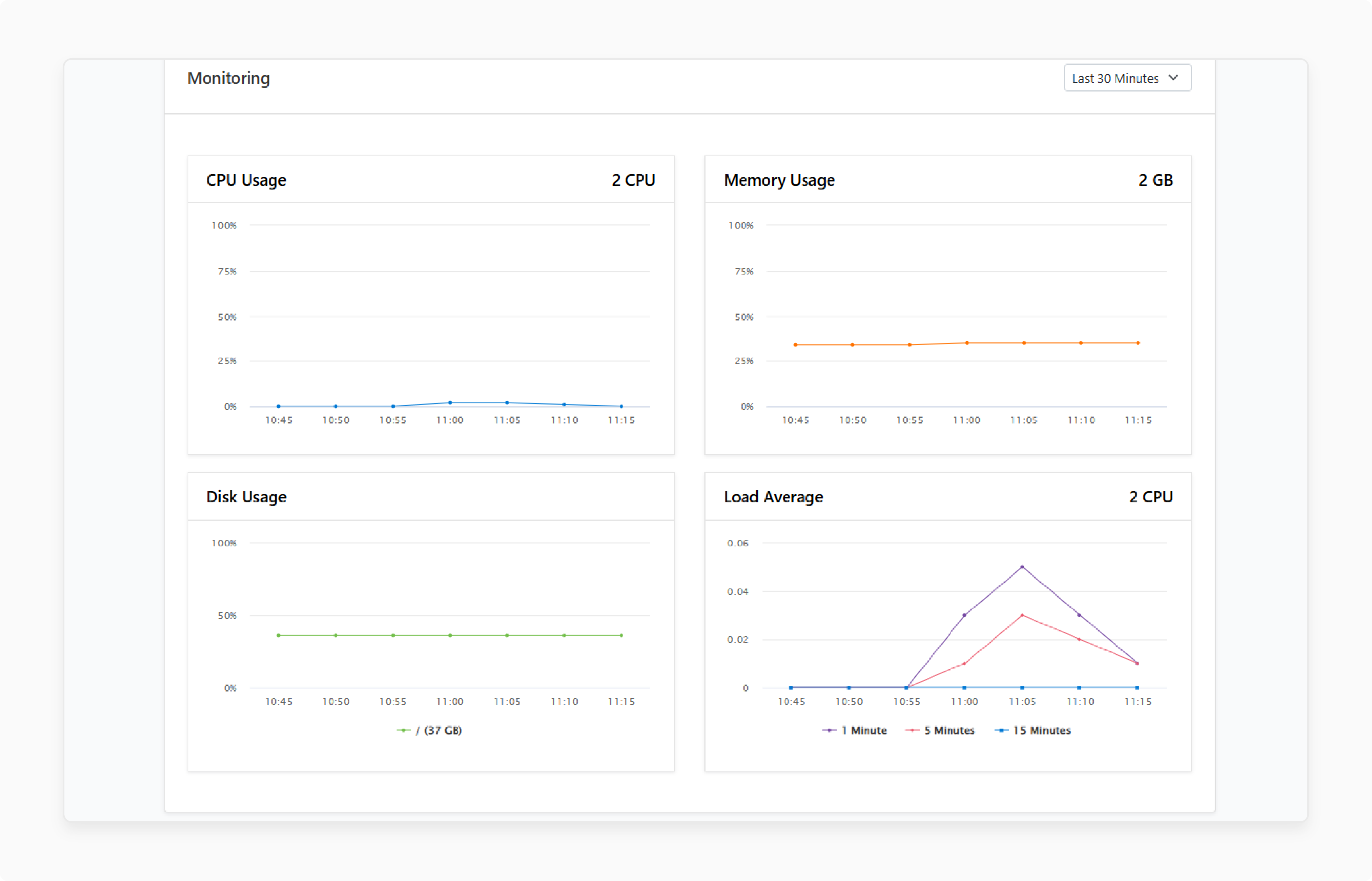

• Check system resources (CPU, RAM, Disk)

• Look for recent service issues in the activity log

If services are down, restart them through CloudPanel:

# In CloudPanel terminal

sudo systemctl restart nginx

# Or for Apache

sudo systemctl restart apache2

Fix Tip: If services fail to start, check CloudPanel's error logs to discover why.

Step 2: Fix DNS Configuration (Difficulty: Basic)

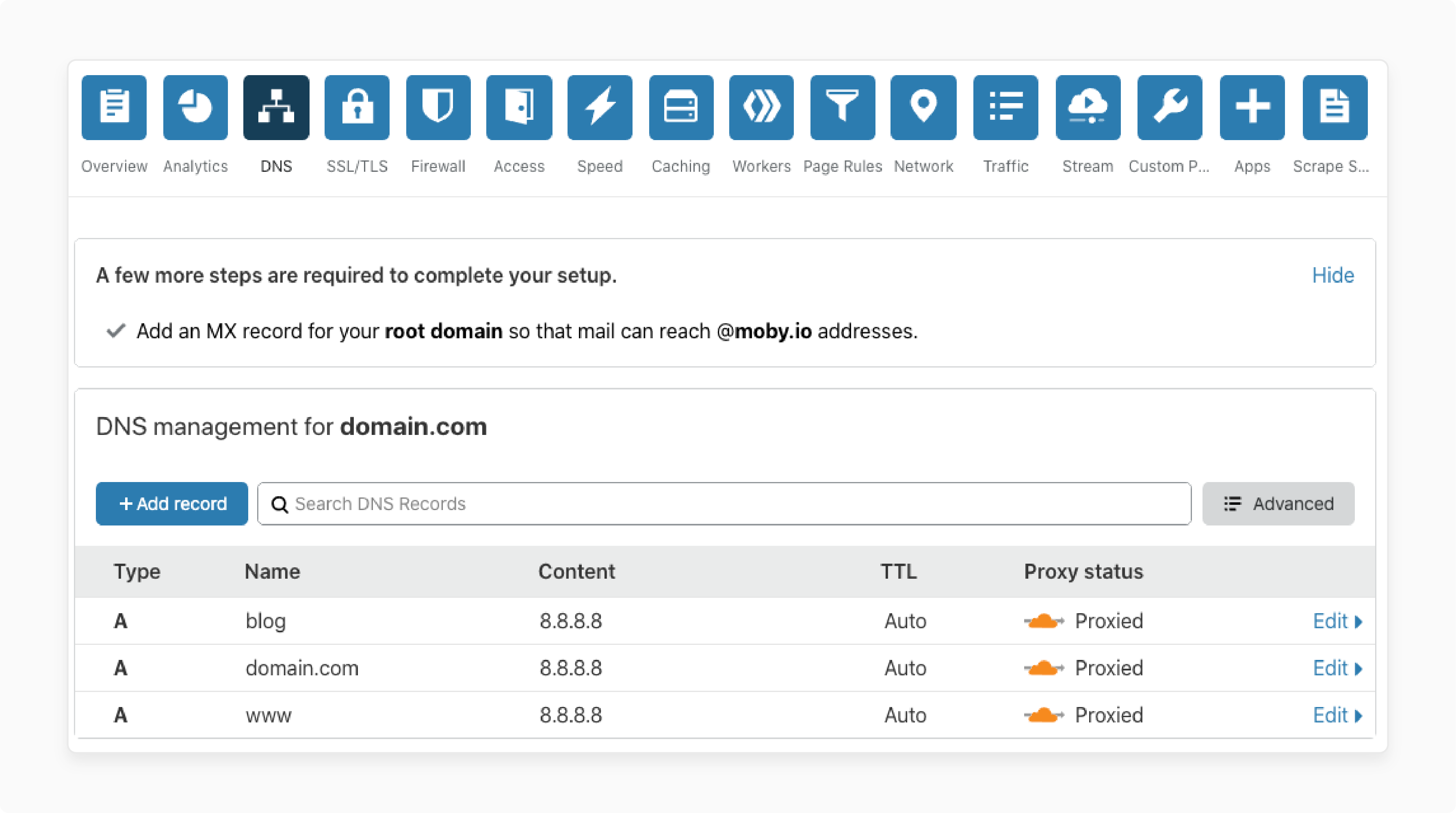

• In CloudPanel, go to Domains > [Your Domain] > DNS Records

• Check that A/CNAME records point to the right server IP

• Make sure Cloudflare proxy is set right (orange cloud icon in Cloudflare)

• Check DNS updates using CloudPanel's tools

Example of correct A record:

Type: A

Name: @

Content: [Your Server IP]

TTL: Auto

Proxy status: Proxied (orange cloud in Cloudflare)

Fix Tip: If DNS looks right but Error 521 still appears, try turning off Cloudflare proxy (gray cloud). It lets you test a direct connection.

Step 3: Set Up NGINX for Cloudflare (Difficulty: Intermediate)

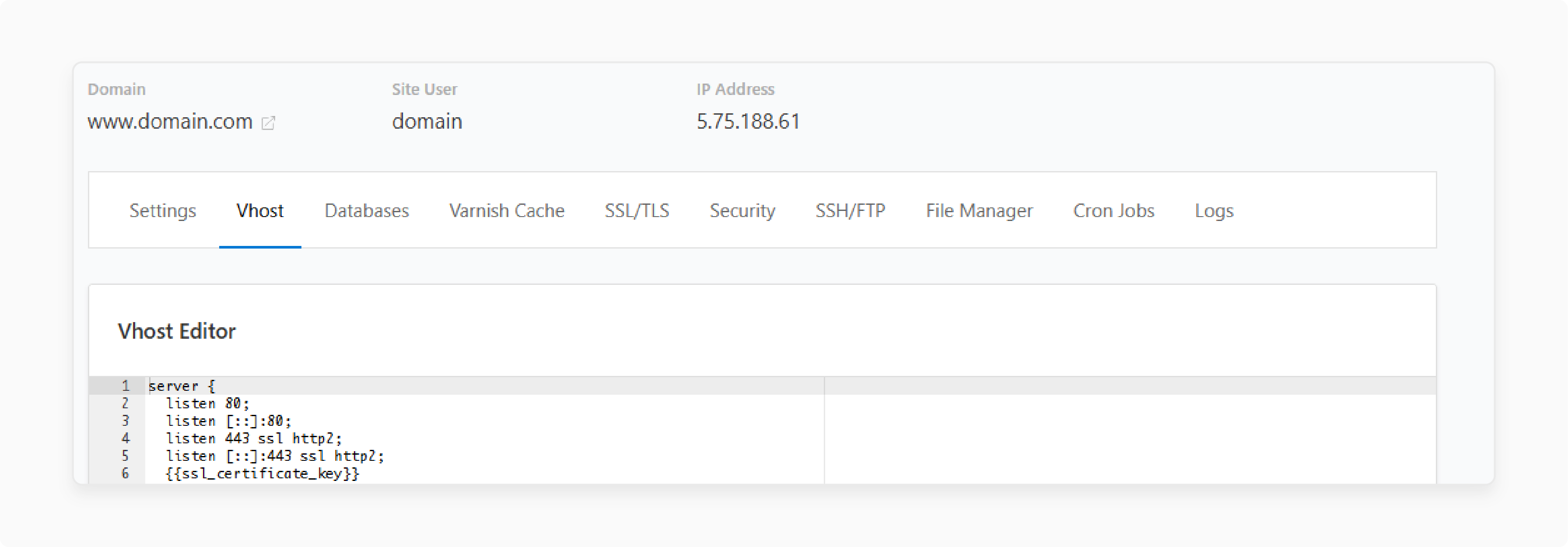

• In CloudPanel, go to Sites > [Your Site] > Vhost

• Click "Edit NGINX Configuration."

• Add Cloudflare IP detection and longer timeouts:

# Better NGINX Setup for Cloudflare

server {

`listen 80;`

`listen [::]:80;`



`# Set real IP from Cloudflare`

`set_real_ip_from 103.21.244.0/22;`

`set_real_ip_from 103.22.200.0/22;`

`set_real_ip_from 103.31.4.0/22;`

`set_real_ip_from 104.16.0.0/13;`

`set_real_ip_from 104.24.0.0/14;`

`set_real_ip_from 108.162.192.0/18;`

`set_real_ip_from 131.0.72.0/22;`

`set_real_ip_from 141.101.64.0/18;`

`set_real_ip_from 162.158.0.0/15;`

`set_real_ip_from 172.64.0.0/13;`

`set_real_ip_from 173.245.48.0/20;`

`set_real_ip_from 188.114.96.0/20;`

`set_real_ip_from 190.93.240.0/20;`

`set_real_ip_from 197.234.240.0/22;`

`set_real_ip_from 198.41.128.0/17;`



`# IPv6 ranges`

`set_real_ip_from 2400:cb00::/32;`

`set_real_ip_from 2606:4700::/32;`

`set_real_ip_from 2803:f800::/32;`

`set_real_ip_from 2405:b500::/32;`

`set_real_ip_from 2405:8100::/32;`

`set_real_ip_from 2a06:98c0::/29;`

`set_real_ip_from 2c0f:f248::/32;`



`real_ip_header CF-Connecting-IP;`



`# Longer timeouts for Cloudflare`

`keepalive_timeout 65;`

`client_max_body_size 100M;`



`# Bigger buffers for large headers`

`client_header_buffer_size 16k;`

`large_client_header_buffers 4 16k;`



`# Security headers`

`add_header X-Frame-Options "SAMEORIGIN" always;`

`add_header X-XSS-Protection "1; mode=block" always;`

`add_header X-Content-Type-Options "nosniff" always;`



`# Other settings…`

}

• Click "Save" and then "Test Configuration."

• If the test passes, click "Apply Configuration" to restart NGINX.

Fix Tip: CloudPanel will show you what's wrong if the configuration fails to apply. Fix those issues and test again before applying.

Step 4: Allow Cloudflare IP Addresses (Difficulty: Intermediate)

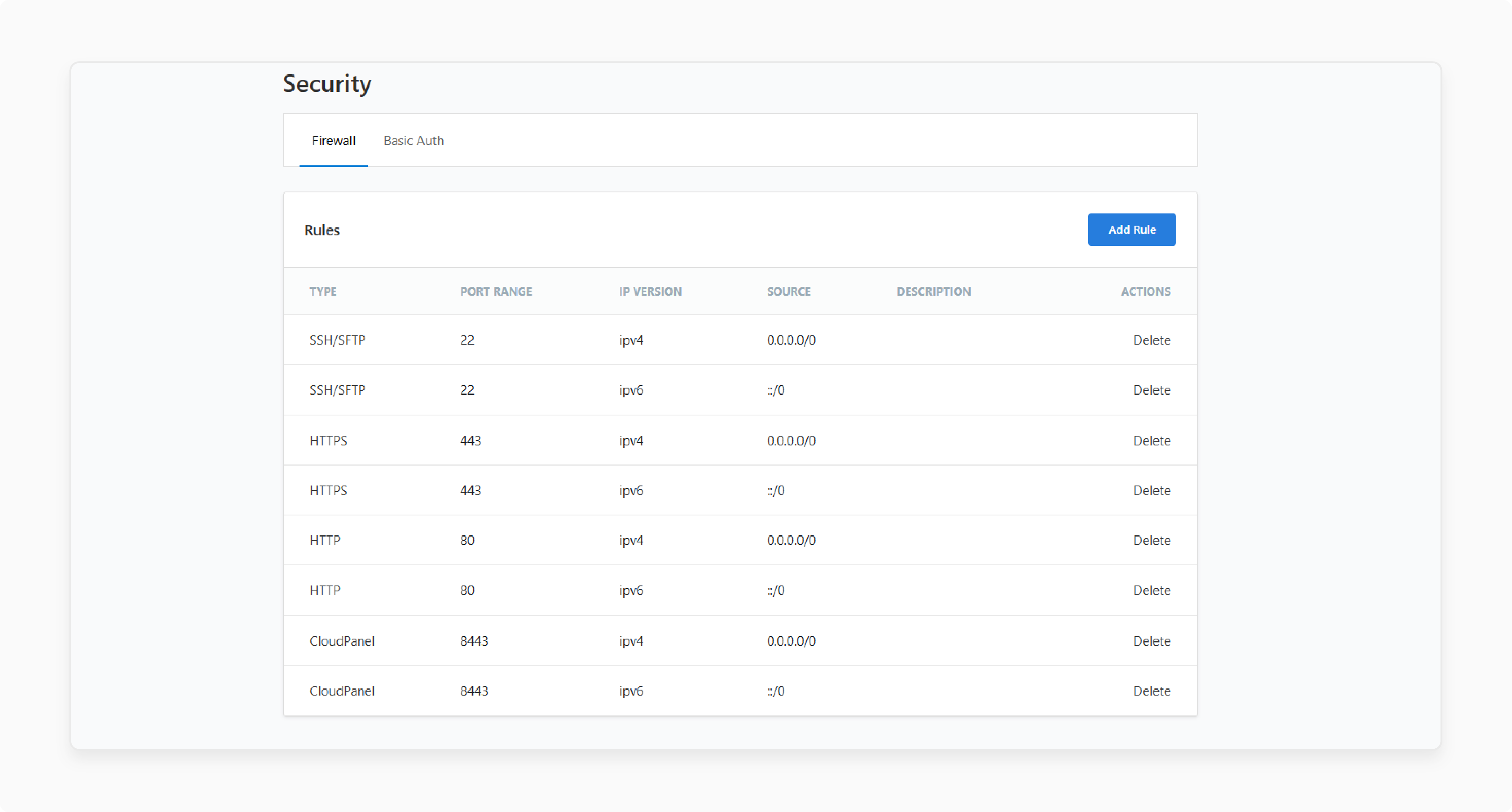

• In CloudPanel, go to Security > Firewall.

• Create a new firewall script in CloudPanel's script editor:

#!/bin/bash

# Auto-Allow Cloudflare IPs Script for CloudPanel

# Get current IPv4 ranges

echo "Getting Cloudflare IPv4 ranges..."

CF_IPV4=$(curl -s https://www.cloudflare.com/ips-v4)

# Get current IPv6 ranges

echo "Getting Cloudflare IPv6 ranges..."

CF_IPV6=$(curl -s https://www.cloudflare.com/ips-v6)

# Create or clear the IP config file

echo "# Cloudflare IPs - Updated $(date)" > /etc/nginx/cloudflare-ips.conf

# Add each IPv4 range to NGINX

for IP in $CF_IPV4; do

`echo "set_real_ip_from $IP;" >> /etc/nginx/cloudflare-ips.conf`

done

# Add each IPv6 range to NGINX

for IP in $CF_IPV6; do

`echo "set_real_ip_from $IP;" >> /etc/nginx/cloudflare-ips.conf`

done

# Add header setting

echo "real_ip_header CF-Connecting-IP;" >> /etc/nginx/cloudflare-ips.conf

# Open the firewall for Cloudflare IPs

echo "Opening firewall ports for Cloudflare IPs..."

# Clear old Cloudflare rules

ufw delete allow from any to any app "Nginx Full" comment "Cloudflare IP"

# Allow each IPv4 range through firewall

for IP in $CF_IPV4; do

`ufw allow from $IP to any app "Nginx Full" comment "Cloudflare IP"`

done

# Allow each IPv6 range through firewall

for IP in $CF_IPV6; do

ufw allow from $IP to any app "Nginx Full" comment "Cloudflare IP"

done

# Reload NGINX to apply changes

echo "Reloading NGINX configuration..."

systemctl reload nginx

echo "Cloudflare IP setup finished!"

• Save the script as "cloudflare-ip-whitelist.sh"

• Set the script to run weekly:

  • Go to Tasks > Scheduled Tasks

  • Add new task: bash /path/to/cloudflare-ip-whitelist.sh

  • Set schedule: E.g., Weekly on Sunday at 2:00 AM

  • Click "Create Task."

• Run the script now to apply changes.

Fix Tip: Check firewall rules with sudo ufw status verbose after running. It ensures Cloudflare IPs get through.

Step 5: Clear Cache Systems (Difficulty: Basic)

• In CloudPanel, go to Sites > [Your Site] > Cache

• Click "Clear All Cache."

• In the Cloudflare dashboard:

  • Go to Caching > Configuration

  • Click "Purge Everything."

  • Turn on Development Mode for testing

Fix Tip: After clearing the cache, test your site with browser cache disabled. Press Ctrl+Shift+R or Cmd+Shift+R to verify fresh content loading.

Step 6: Look at Log Files (Difficulty: Advanced)

• In CloudPanel, go to Sites > [Your Site] > Logs

• Check both access and error logs

• Filter logs for error patterns:

  • Connection refused errors

  • SSL handshake failures

  • Timeout errors

  • Firewall rejection messages

Example log patterns to look for:

# Connection refused

connect() to [IP]:80 failed (111: Connection refused)

# SSL errors

SSL_do_handshake() failed

# Timeout errors

upstream timed out

• Use CloudPanel's log tools to find patterns and repeat issues

Fix Tip: Compare error timestamps with server load metrics. It helps find if performance issues cause Error 521.

How To Troubleshoot Specific Error 521 In Cloudflare?

Scenario 1: On-and-Off Error 521 (Difficulty: Intermediate)

Symptoms: Error shows up at a random time, the site works sometimes

Common Causes:

• The server is hitting resource limits.

• The database connection pool is full.

• Network issues that come and go.

CloudPanel Solution:

• Go to Monitoring > Resources

• Set up alerts at 75% of capacity.

• Use CloudPanel's traffic control:

  • Go to Settings > Performance

  • Enable "Traffic Control"

  • Set reasonable connection limits

Configuration Example:

# Add to NGINX config

limit_conn_zone $binary_remote_addr zone=conn_limit_per_ip:10m;

limit_conn conn_limit_per_ip 20;

limit_req_zone $binary_remote_addr zone=req_limit_per_ip:10m rate=5r/s;

limit_req zone=req_limit_per_ip burst=10 nodelay;

Scenario 2: Error 521 After Moving Servers (Difficulty: Advanced)

Symptoms: Error 521 shows right after moving to a new server

Common Causes:

• DNS is not updated

• The server firewall is blocking Cloudflare

• New IP not updated in Cloudflare

CloudPanel Solution:

• Use CloudPanel's Migration Checker:

  • Go to Tools > Migration Verification

  • Run the Cloudflare connection test

• Run auto migration fixes:

  • One-click DNS updates

  • Firewall setup sync

  • SSL certificate check and renewal

Scenario 3: Error 521 During High Traffic (Difficulty: Advanced)

Symptoms: The error only shows during traffic spikes

Common Causes:

• Worker process limits reached

• Connection pool full

• Memory limits exceeded

CloudPanel Solution:

• Go to Performance > Optimization

• Adjust NGINX worker settings:

  • Increase worker connections

  • Optimize worker processes

  • Enable microcaching

Configuration Example:

# Better worker setup

worker_processes auto;

worker_rlimit_nofile 65535;

events {

`worker_connections 4096;`

`multi_accept on;`

use epoll;

}

# Microcaching setup

fastcgi_cache_path /var/cache/nginx levels=1:2 keys_zone=CACHEZONE:100m inactive=60m;

fastcgi_cache_key "$scheme$request_method$host$request_uri";

add_header X-Cache $upstream_cache_status;

What Are The Preventive Measures To Fix The Error 521 Issue?

Prevent Error 521 before it happens with CloudPanel's tools:

1. Auto Health Checks (Difficulty: Basic)

CloudPanel includes built-in health monitoring:

• Go to Monitoring > Health Checks

• Set up checks for:

  • NGINX/Apache service status

  • Server resource levels

  • Database connection

  • Network status

• Set up alerts via:

  • Email

  • SMS

  • Webhook (Slack, Discord, etc.)

2. Scheduled Performance Tests (Difficulty: Intermediate)

CloudPanel can run regular tests to find issues before they cause Error 521:

• Go to Tools > Performance Testing

• Set test settings:

  • Test timing (daily/weekly)

  • Connection limits

  • Load test levels

• Set up response-based alerts

3. Auto Backup and Recovery (Difficulty: Basic)

CloudPanel's backup system ensures quick recovery if Error 521 occurs:

• Go to Backups > Configuration

• Set up auto backups:

  • Daily configuration backups

  • Database backups

  • Full system snapshots

• Set up one-click restore

CloudPanel vs. Other Control Panels for Error 521

Compare how different server control panels handle Cloudflare Error 521 fixing:

Feature	CloudPanel	cPanel	Plesk	DirectAdmin
Cloudflare Integration	Built-in	Plugin needed	Plugin needed	Plugin needed
Auto IP Whitelisting	Yes	No	No	No
Visual NGINX Config	Yes	No	Limited	No
Real-time Log Analysis	Yes	Limited	Limited	Limited
Error-Specific Fixes	Yes	No	No	No
Preventive Monitoring	Yes	Limited	Yes	No
Auto Recovery	Yes	No	No	No
Server Resource Usage	Low	High	Medium	Low

FAQs

1. What does Cloudflare Error 521 mean?

Error 521 means Cloudflare could not make a TCP connection to your origin server. It differs from other Cloudflare errors. It shows a direct connection refusal rather than a timeout or protocol error.

2. Can Error 521 appear even if my server runs fine?

Yes, even with a perfect web server, Error 521 can happen if:

• Your firewall blocks Cloudflare IP ranges

• Your NGINX/Apache configuration doesn't handle Cloudflare connections right

• DNS records point to the wrong IP. CloudPanel's check tools can test all three at once.

3. How fast can CloudPanel fix Error 521?

For most cases, CloudPanel can fix Error 521 in 5-15 minutes using its built-in tools. The auto diagnosis finds the likely cause. One-click fixes apply the needed changes. Fixing cases with custom configs takes under 30 minutes with CloudPanel's guided help.

4. Will CloudPanel's Error 521 fixes work with any host?

Yes, CloudPanel works with all major cloud providers. It includes AWS, Google Cloud, DigitalOcean, Linode, and Vultr. It also works with regular VPS and dedicated servers. The Cloudflare connection tools work anywhere you install CloudPanel.

5. Do I need tech skills to use CloudPanel's Error 521 fixing tools?

CloudPanel works for both beginners and experts. The interface offers:

• One-click fixes for common issues.

• Visual configuration editors for mid-level users.

• Advanced shell access for tech customization. It means anyone can fix Error 521, no matter their tech skill level.

Summary

Cloudflare Error code 521 can frustrate site owners and users. CloudPanel gives you a complete toolkit to find and fix the underlying issues. CloudPanel's approach to server management makes it ideal for fixing Cloudflare connection issues:

• Easy visual tools remove the need for command-line knowledge.

• Auto diagnosis finds the exact causes of Error 521.

• One-click fixes apply the best solutions in no time.

• Preventive monitoring helps avoid future problems.

• Full logging gives detailed insights for troubleshooting.

Ready to end Cloudflare Error 521? Download CloudPanel today and follow this guide to restore your site.
