How to restrict WordPress Admin Access by IP Address with NGINX

• Step 1 - Login into CloudPanel

• Step 2 - Vhost Changes

• Testing

Step 1 - Login into CloudPanel

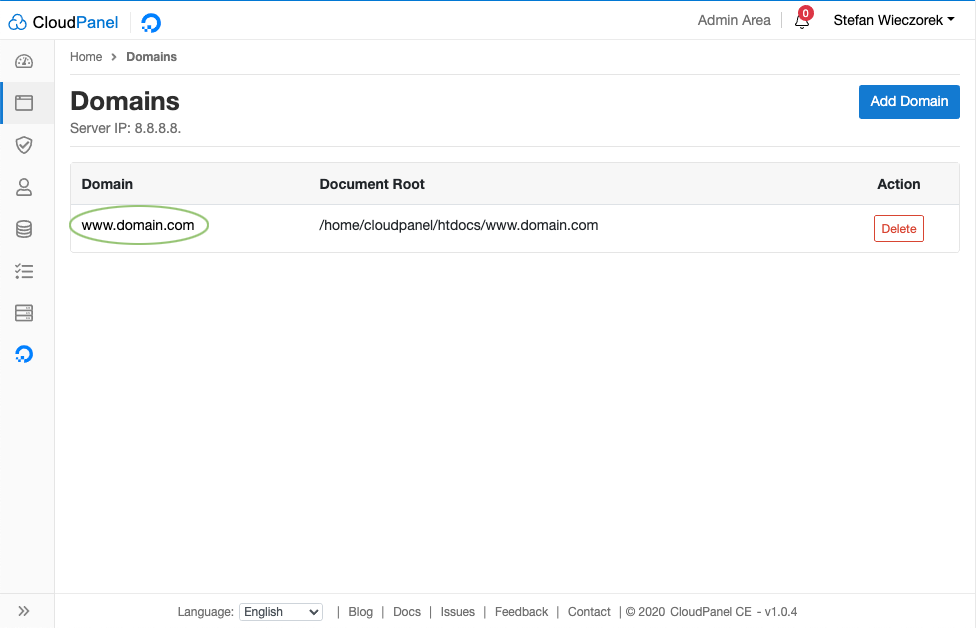

First, login into CloudPanel and click on the Domain where WordPress is installed.

Step 2 - Vhost Changes

In the next step, open the Vhost Editor, that we can make changes on the NGINX Vhost.

By default, the vhost looks like the following one:

server {
  listen 80;
  listen [::]:80;
  listen 443 ssl http2;
  listen [::]:443 ssl http2;
  {{ssl_certificate_key}}
  {{ssl_certificate}}
  server_name www.domain.com www1.domain.com;
  {{root}}

  {{nginx_access_log}}
  {{nginx_error_log}}

  if ($bad_bot = 1) {
    return 403;
  }

  if ($scheme != "https") {
    rewrite ^ https://$host$uri permanent;
  }

  location ~ /.well-known {
    auth_basic off;
    allow all;
  }

  {{basic_auth}}

  try_files $uri $uri/ /index.php?$args;
  index index.php index.html;

  location ~ \.php$ {
    include fastcgi_params;
    fastcgi_intercept_errors on;
    fastcgi_index index.php;
    fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
    try_files $uri =404;
    fastcgi_read_timeout 3600;
    fastcgi_send_timeout 3600;
    fastcgi_param HTTPS $fastcgi_https;
    {{php_fpm_listener}}
    {{php_settings}}
  }

  location ~* ^.+\.(css|js|jpg|jpeg|gif|png|ico|gz|svg|svgz|ttf|otf|woff|eot|mp4|ogg|ogv|webm|webp|zip|swf)$ {
    add_header Access-Control-Allow-Origin "*";
    expires max;
    access_log off;
  }

  if (-f $request_filename) {
    break;
  }
}

We add the following lines after the {{basic_auth}} placeholder:

location ~ /(wp-login|wp-admin/) {
  allow 8.8.8.8; # Company Office
  allow 6.6.6.6; # Home Office
  deny all;
  location ~ \.php$ {
    include fastcgi_params;
    fastcgi_intercept_errors on;
    fastcgi_index index.php;
    fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
    try_files $uri =404;
    fastcgi_read_timeout 3600;
    fastcgi_send_timeout 3600;
    fastcgi_param HTTPS $fastcgi_https;
    {{php_fpm_listener}}
    {{php_settings}}
  }
}

In the lines above, we have added a location for wp-login and wp-admin. All URLS that contains wp-login or wp-admin are only accessible for the IPs 8.8.8.8 and 6.6.6.6.

The final vhost should look like this:

server {
  listen 80;
  listen [::]:80;
  listen 443 ssl http2;
  listen [::]:443 ssl http2;
  {{ssl_certificate_key}}
  {{ssl_certificate}}
  server_name www.domain.com www1.domain.com;
  {{root}}

  {{nginx_access_log}}
  {{nginx_error_log}}

  if ($bad_bot = 1) {
    return 403;
  }

  if ($scheme != "https") {
    rewrite ^ https://$host$uri permanent;
  }

  location ~ /.well-known {
    auth_basic off;
    allow all;
  }

  {{basic_auth}}

  location ~ /(wp-login|wp-admin/) {
    allow 8.8.8.8; # Company Office
    allow 6.6.6.6; # Home Office
    deny all;
    location ~ \.php$ {
      include fastcgi_params;
      fastcgi_intercept_errors on;
      fastcgi_index index.php;
      fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
      try_files $uri =404;
      fastcgi_read_timeout 3600;
      fastcgi_send_timeout 3600;
      fastcgi_param HTTPS $fastcgi_https;
      {{php_fpm_listener}}
      {{php_settings}}
    }
  }

  try_files $uri $uri/ /index.php?$args;
  index index.php index.html;

  location ~ \.php$ {
    include fastcgi_params;
    fastcgi_intercept_errors on;
    fastcgi_index index.php;
    fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
    try_files $uri =404;
    fastcgi_read_timeout 3600;
    fastcgi_send_timeout 3600;
    fastcgi_param HTTPS $fastcgi_https;
    {{php_fpm_listener}}
    {{php_settings}}
  }

  location ~* ^.+\.(css|js|jpg|jpeg|gif|png|ico|gz|svg|svgz|ttf|otf|woff|eot|mp4|ogg|ogv|webm|webp|zip|swf)$ {
    add_header Access-Control-Allow-Origin "*";
    expires max;
    access_log off;
  }

  if (-f $request_filename) {
    break;
  }
}

Testing

To check if the restriction is working as expected, we can remove our IP from the location and send a cURL request to see the 403 status code.

We send a GET request via cURL to wp-login.php:

curl -Ik https://www.domain/wp-login.php

In the response we see the 403 status code as expected:

HTTP/2 403
server: nginx
date: Wed, 23 Dec 2020 08:08:08 GMT
content-type: text/html
content-length: 146
vary: Accept-Encoding

Instead of using cURL you can also open the URL in your browser to see the 403.
